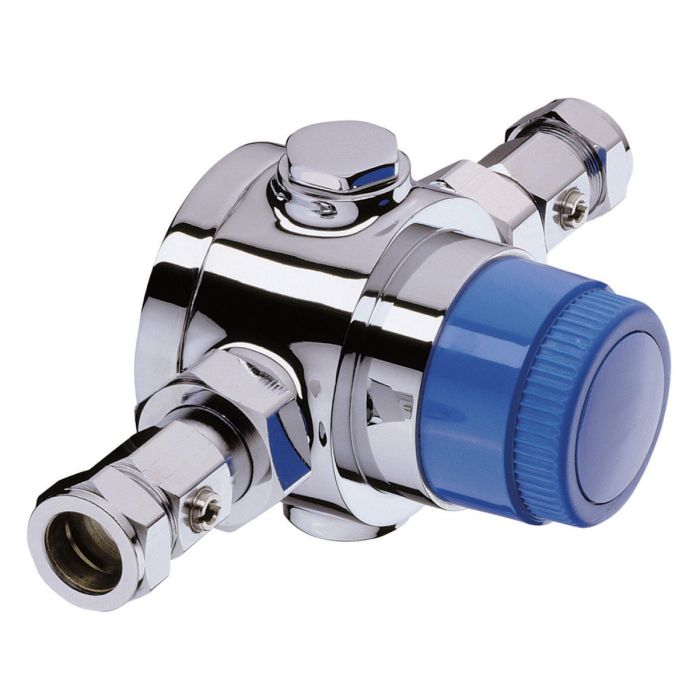

Bristan 22MM Group Thermostatic Mixing Valve (TMV3) with Integral Isolation

Bristan’s 22mm Thermostatic TMV3 Group Blending Valve with Integral Isolation Valves is an approved thermostatic mixing valve, suitable for a variety of commercial washroom applications.

The stylish chrome finished valve offers fast flow rates of 81 l/min at 3 bar for an invigorating showering experience and fast filling baths and is ideal for installation in group applications where pressures are as low as 0.1 bar. The valve operates at a maximum pressure differential of 10:1.

Simple to operate, the thermostatic mixing valve has an adjustable temperature control dial which can also be locked in position. For easy servicing and maintenance, the product comes with check valves and serviceable filters as standard.

Suitable for leisure, student accommodation, education, NHS and Healthcare use, the valve is TMV3 approved, so it will shut off automatically should the hot or cold water supply fail, thereby reducing the risk of scalding.

The TMV3 scheme is an independent testing scheme run by BuildCert which ensures national and international standards are met (BS EN 1111 and 1287). Approval under the scheme means high standards of thermostatic protection and suitability for use in commercial applications (TMV3).

Features

• Ideal for group applications at pressures as low as 0.1 bar
• Adjustable and locking temperature controls
• Automatic shut off in the event of a hot or cold water supply failure
• 22mm inlets and outlet
• Check valves and serviceable filters supplied as standard
• TMV3 approved
• WRAS approved
