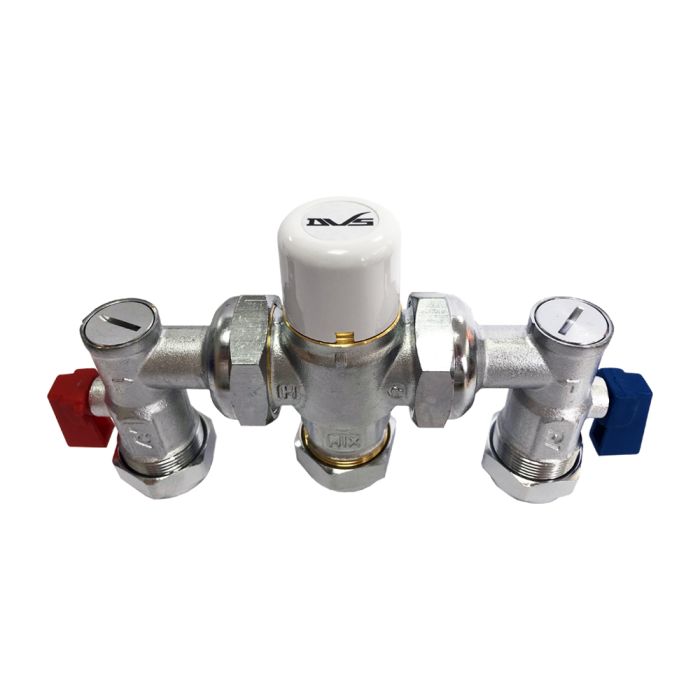

Delabie | DVS Thermostatic Mixing Valve 4 in 1 TMV3 15mm/22mm

This Delabie | DVS (formerly KWC DVS) Thermostatic Mixing Valve 4 in 1 TMV3 15mm/22mm is highly-advanced and approved for use in showers, bidets and high-pressure bath fill applications (above 1 bar), and will fit both 15mm and 22mm connections.

The Delabie | DVS mixing valve will control the temperature of the water, irrelevant of external water temperatures, so that it remains within a safe temperature range, with the rapid thermostatic failsafe protecting the user from either cold or hot supply failure and extreme temperature dangers.

There is a purpose-built adjuster key to prevent tampering by unauthorised personnel and the changing of the outlet temperature.

Supplied with 4-in-1 service fittings including an isolating ball valve, large surface area strainers, single valve check for cross-flow protection, and a gauge/flushing port for checking system conditions or for connection of a flushing hose to remove system debris prior to commissioning the valve.

Features:

• Protection from extreme temperature dangers
• Prevents unauthorised tampering
• WRAS approved
• TMV3 scheme approved
• Fits 15mm and 22mm connections
• Minimum operating pressure of 0.2 bar dynamic

Product code: AC17-047
