OTL Linear Wet Room Drainage Tiled Floor Former Kit with Channel Grating

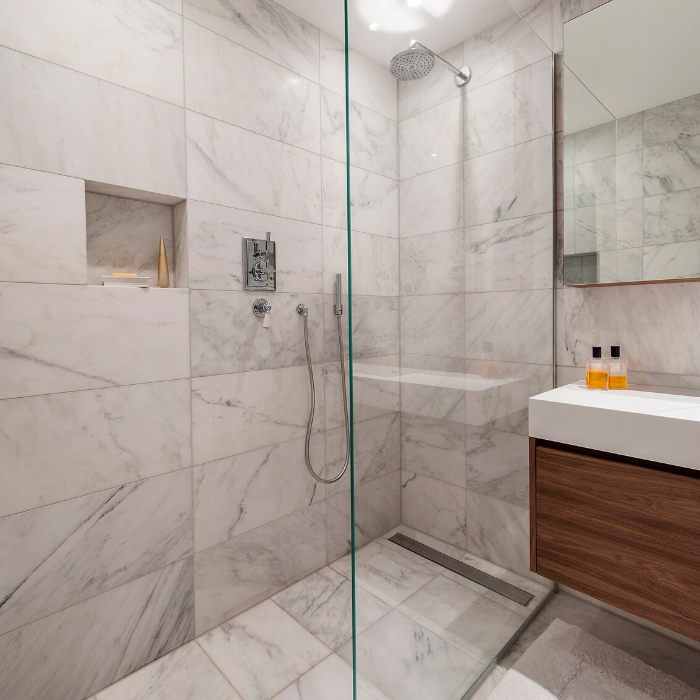

The versatile linear shower drainage kit from On The Level is designed for tile floor finishes. It will fit seamlessly into any wet room design. Its traditional style perfectly blends with the contours of the shower area and tiles.

The Linear kit includes a 24mm-thick former with a 2-way fall that directs all water toward the drain. Perfect for large-format tiles, as you won't need to mitre the cuts.

Floor formers are manufactured to order and available in any size. Select from the drop-down options for pricing on our most popular sizes. Bespoke sizes are priced on application.

OTL Linear Drainage Kit Features

• Manufactured from grade 316 stainless steel
• Horizontal and Vertical Gully options available
• Compatible with tiles up to 25mm thick
• Pre-formed gradient ensures efficient drainage
• Three grate designs available

Linear Kit Components

• Water Channel and Grating - Manufactured from high-grade stainless steel, the linear kit includes the ATHENA grate, which features a bubble design.
• Gully - Supplied as standard with a horizontal gully, the linear also has a vertical style available to suit your floor layout.
• Linear Former - The former comes in a range of sizes suitable for most bathrooms and features an integrated, two-way fall.
• Linear Tanking Kit - The tanking system helps eliminate leakages from tiled wet room floor areas.

PLEASE NOTE that alternative grate styles are available upon request at an additional cost.

All You Need To Know About Tanking

The OTL Linear Tanking Kit has been developed to eliminate leakages in tiled wet room floor areas and can be applied to a range of surfaces, including wood, Plasterboard, MDF, concrete, screeds, and most other commonly used construction boards.

Tank the entire wet room floor area, including the bottom of the walls, turning up from the floor by a minimum of 100mm.

Once applied, the tanking can cope with structural movement in the floor and won't become brittle with age. It can also be used with all types of underfloor heating.

The Linear Tanking Kit covers up to 8m2 and contains the following:

• 8kg compound
• 1-litre primer
• 10m tanking tape
• 1x linear tanking mat
